Complete PVT Properties — Oil, Gas & Water

Multi-sheet PVT workbook demonstrating all major fluid property correlations across oil, gas, and water phases. Uses named input cells so engineers can quickly adapt to their reservoir conditions.

Complete PVT Properties Excel workbook

PVTFunctions.xlsx

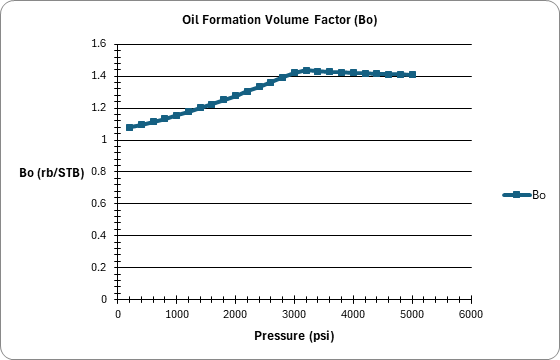

Complete PVT Properties — Oil, Gas & Water: Oil Formation Volume Factor (Bo) (Oil PVT)

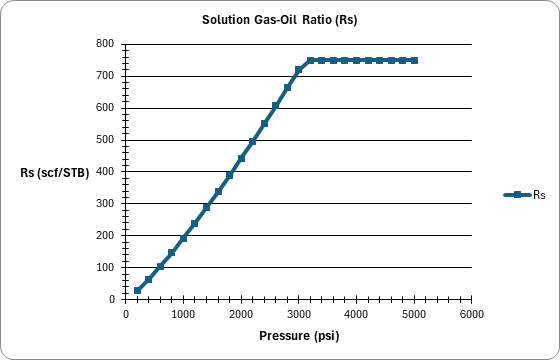

Complete PVT Properties — Oil, Gas & Water: Solution Gas-Oil Ratio (Rs) (Oil PVT)

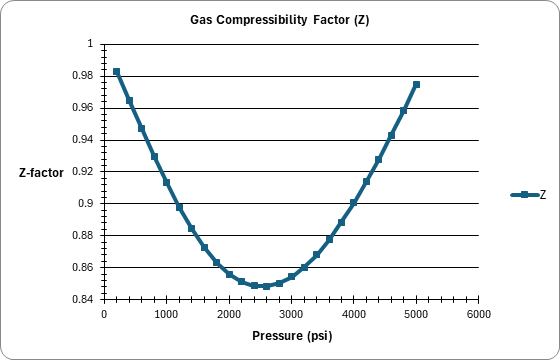

Complete PVT Properties — Oil, Gas & Water: Gas Compressibility Factor (Z) (Gas PVT)

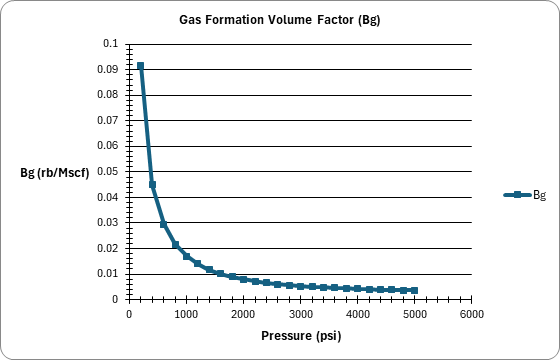

Complete PVT Properties — Oil, Gas & Water: Gas Formation Volume Factor (Bg) (Gas PVT)

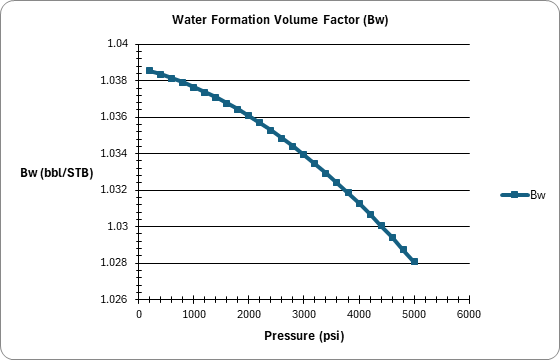

Complete PVT Properties — Oil, Gas & Water: Water Formation Volume Factor (Bw) (Water PVT)

Complete PVT Properties — Oil, Gas & Water: Inputs sheet

Complete PVT Properties — Oil, Gas & Water: Oil PVT sheet

Complete PVT Properties — Oil, Gas & Water: Gas PVT sheet

Complete PVT Properties — Oil, Gas & Water: Water PVT sheet

Description Preview Requirements

Inputs

Named cells you can edit — every result recalculates from them.

Name	Description	Default	Unit
`API`	API Gravity	35	dAPI
`GasGravity`	Gas Gravity (γg)	0.75	(air=1)
`Temperature`	Reservoir Temperature	200	degF
`RsAtPb`	Rs at Bubble Point	750	scf/STB
`Salinity_pct`	Salinity	3.0	% NaCl
`Salinity_gl`	Salinity	30.0	g NaCl/L

5 sheets, shown with the values the file opens with

	A	B	C

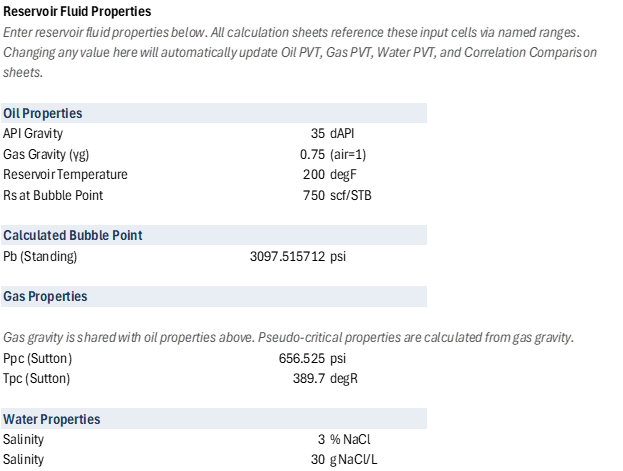

1	Reservoir Fluid Properties
2	Enter reservoir fluid properties below. All calculation sheets reference these input cells via named ranges. Changing any value here will automatically update Oil PVT, Gas PVT, Water PVT, and Correlation Comparison sheets.
3
4	Oil Properties
5	API Gravity	35	dAPI
6	Gas Gravity (γg)	0.75	(air=1)
7	Reservoir Temperature	200	degF
8	Rs at Bubble Point	750	scf/STB
9
10	Calculated Bubble Point
11	Pb (Standing)	3097.515712	psi
12
13	Gas Properties
14	Gas gravity is shared with oil properties above. Pseudo-critical properties are calculated from gas gravity.
15	Ppc (Sutton)	656.525	psi
16	Tpc (Sutton)	389.7	degR
17
18	Water Properties
19	Salinity	3	% NaCl
20	Salinity	30	g NaCl/L

	A	B	C	D	E	F

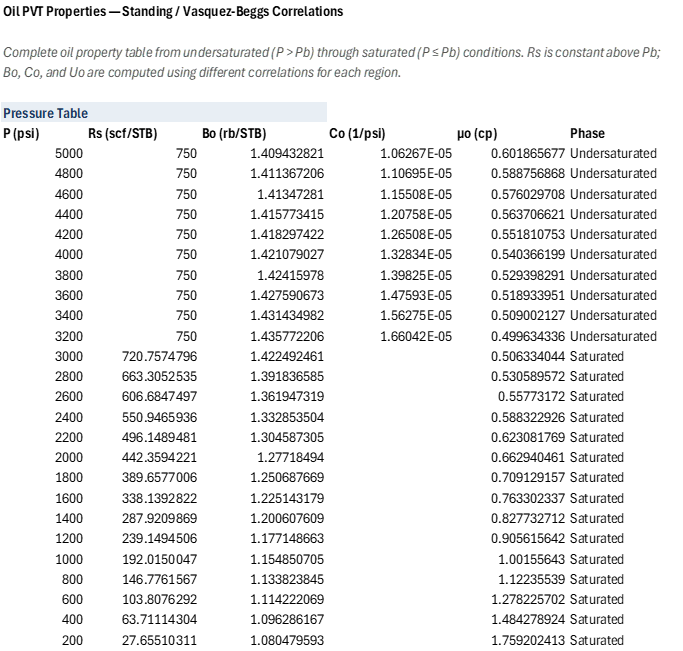

1	Oil PVT Properties — Standing / Vasquez-Beggs Correlations
2	Complete oil property table from undersaturated (P > Pb) through saturated (P ≤ Pb) conditions. Rs is constant above Pb; Bo, Co, and Uo are computed using different correlations for each region.
3
4	Pressure Table
5	P (psi)	Rs (scf/STB)	Bo (rb/STB)	Co (1/psi)	μo (cp)	Phase
6	5000	750	1.409432821	1.06267E-05	0.6018656767	Undersaturated
7	4800	750	1.411367206	1.106947917E-05	0.5887568677	Undersaturated
8	4600	750	1.41347281	1.155076087E-05	0.5760297078	Undersaturated
9	4400	750	1.415773415	1.207579545E-05	0.5637066214	Undersaturated
10	4200	750	1.418297422	1.265083333E-05	0.551810753	Undersaturated
11	4000	750	1.421079027	1.3283375E-05	0.5403661986	Undersaturated
12	3800	750	1.42415978	1.39825E-05	0.5293982907	Undersaturated
13	3600	750	1.427590673	1.475930556E-05	0.518933951	Undersaturated
14	3400	750	1.431434982	1.56275E-05	0.5090021272	Undersaturated
15	3200	750	1.435772206	1.660421875E-05	0.4996343364	Undersaturated
16	3000	720.7574796	1.422492461		0.5063340439	Saturated
17	2800	663.3052535	1.391836585		0.5305895716	Saturated
18	2600	606.6847497	1.361947319		0.5577317198	Saturated
19	2400	550.9465936	1.332853504		0.5883229259	Saturated
20	2200	496.1489481	1.304587305		0.6230817686	Saturated
21	2000	442.3594221	1.27718494		0.6629404611	Saturated
22	1800	389.6577006	1.250687669		0.7091291574	Saturated
23	1600	338.1392822	1.225143179		0.763302337	Saturated
24	1400	287.9209869	1.200607609		0.8277327115	Saturated
25	1200	239.1494506	1.177148663		0.9056156419	Saturated
26	1000	192.0150047	1.154850705		1.00155643	Saturated
27	800	146.7761567	1.133823845		1.12235539	Saturated
28	600	103.8076292	1.114222069		1.278225702	Saturated
29	400	63.71114304	1.096286167		1.484278924	Saturated
30	200	27.65510311	1.080479593		1.759202413	Saturated
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

μo

	A	B	C	D	E

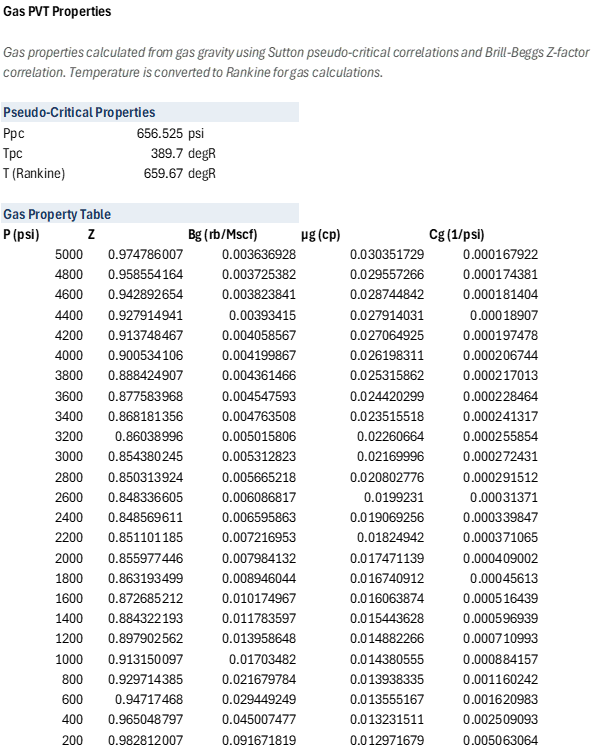

1	Gas PVT Properties
2	Gas properties calculated from gas gravity using Sutton pseudo-critical correlations and Brill-Beggs Z-factor correlation. Temperature is converted to Rankine for gas calculations.
3
4	Pseudo-Critical Properties
5	Ppc	656.525	psi
6	Tpc	389.7	degR
7	T (Rankine)	659.67	degR
8
9	Gas Property Table
10	P (psi)	Z	Bg (rb/Mscf)	μg (cp)	Cg (1/psi)
11	5000	0.9747860068	0.003636927728	0.03035172859	0.000167921643
12	4800	0.9585541639	0.003725381983	0.02955726602	0.0001743814234
13	4600	0.9428926537	0.003823840859	0.02874484156	0.0001814040912
14	4400	0.9279149409	0.003934149689	0.02791403078	0.0001890704346
15	4200	0.9137484665	0.004058567374	0.02706492453	0.000197477811
16	4000	0.9005341064	0.004199867251	0.02619831124	0.000206744039
17	3800	0.888424907	0.004361466268	0.02531586217	0.0002170133433
18	3600	0.8775839682	0.00454759279	0.0244202992	0.0002284637179
19	3400	0.8681813562	0.004763508313	0.02351551841	0.0002413171453
20	3200	0.8603899597	0.005015806161	0.02260664045	0.0002558536153
21	3000	0.8543802454	0.00531282282	0.02169996003	0.000272430799
22	2800	0.8503139235	0.005665218286	0.02080277621	0.0002915123268
23	2600	0.848336605	0.006086817043	0.0199230999	0.0003137097738
24	2400	0.8485696111	0.006595862935	0.01906925611	0.000339846891
25	2200	0.8511011854	0.007216953444	0.01824941953	0.0003710649357
26	2000	0.8559774458	0.007984132122	0.01747113881	0.0004090021881
27	1800	0.8631934987	0.008946044307	0.01674091246	0.0004561303681
28	1600	0.8726852117	0.01017496732	0.01606387388	0.0005164385002
29	1400	0.8843221933	0.01178359691	0.01544362845	0.0005969393158
30	1200	0.8979025616	0.01395864794	0.01488226564	0.00071099259
31	1000	0.9131500967	0.01703482038	0.01438055456	0.0008841570778
32	800	0.929714385	0.02167978409	0.01393833499	0.001160242267
33	600	0.9471746796	0.02944924862	0.01355516744	0.001620983291
34	400	0.9650487975	0.04500747736	0.01323151051	0.002509092757
35	200	0.9828120066	0.09167181857	0.01297167872	0.00506306447
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

	A	B	C	D	E

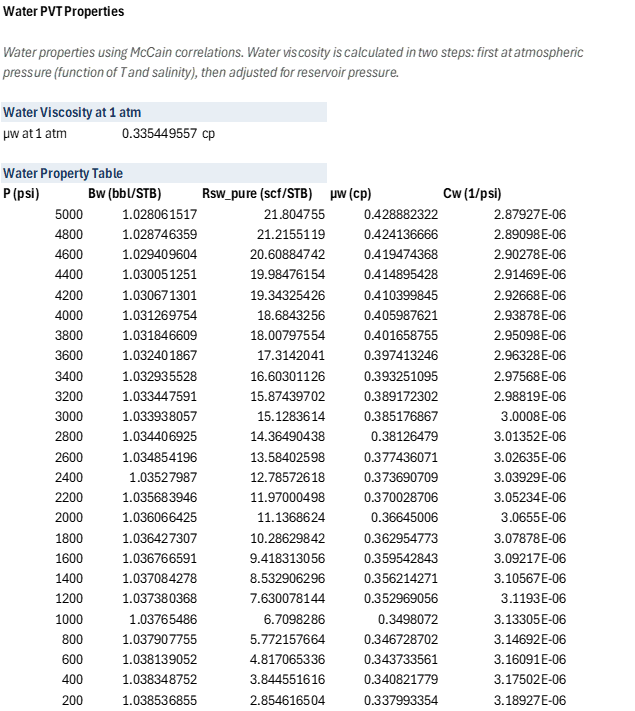

1	Water PVT Properties
2	Water properties using McCain correlations. Water viscosity is calculated in two steps: first at atmospheric pressure (function of T and salinity), then adjusted for reservoir pressure.
3
4	Water Viscosity at 1 atm
5	μw at 1 atm	0.3354495566	cp
6
7	Water Property Table
8	P (psi)	Bw (bbl/STB)	Rsw_pure (scf/STB)	μw (cp)	Cw (1/psi)
9	5000	1.028061517	21.804755	0.4288823216	2.87927212E-06
10	4800	1.028746359	21.2155119	0.4241366657	2.890980545E-06
11	4600	1.029409604	20.60884742	0.4194743677	2.902784583E-06
12	4400	1.030051251	19.98476154	0.4148954276	2.914685409E-06
13	4200	1.030671301	19.34325426	0.4103998454	2.926684219E-06
14	4000	1.031269754	18.6843256	0.405987621	2.938782227E-06
15	3800	1.031846609	18.00797554	0.4016587545	2.95098067E-06
16	3600	1.032401867	17.3142041	0.3974132459	2.963280802E-06
17	3400	1.032935528	16.60301126	0.3932510951	2.975683901E-06
18	3200	1.033447591	15.87439702	0.3891723022	2.988191266E-06
19	3000	1.033938057	15.1283614	0.3851768672	3.000804216E-06
20	2800	1.034406925	14.36490438	0.3812647901	3.013524093E-06
21	2600	1.034854196	13.58402598	0.3774360708	3.026352265E-06
22	2400	1.03527987	12.78572618	0.3736907094	3.039290119E-06
23	2200	1.035683946	11.97000498	0.3700287059	3.052339068E-06
24	2000	1.036066425	11.1368624	0.3664500603	3.06550055E-06
25	1800	1.036427307	10.28629842	0.3629547725	3.078776026E-06
26	1600	1.036766591	9.418313056	0.3595428426	3.092166984E-06
27	1400	1.037084278	8.532906296	0.3562142706	3.105674938E-06
28	1200	1.037380368	7.630078144	0.3529690564	3.119301426E-06
29	1000	1.03765486	6.7098286	0.3498072002	3.133048017E-06
30	800	1.037907755	5.772157664	0.3467287018	3.146916305E-06
31	600	1.038139052	4.817065336	0.3437335612	3.160907914E-06
32	400	1.038348752	3.844551616	0.3408217786	3.175024495E-06
33	200	1.038536855	2.854616504	0.3379933538	3.189267731E-06
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78

μw

	A	B	C	D
1	Correlation Comparison — Standing vs Vasquez-Beggs vs Glaso
2	Side-by-side comparison of three widely-used PVT correlations for saturated oil properties. All correlations use the same input parameters from the Inputs sheet.
3
4	Solution GOR (Rs) — Saturated Region
5	P (psi)	Rs Standing	Rs Vasquez-Beggs	Rs Glaso
6	3500	867.7469436	765.0944567	758.7508232
7	3200	778.996921	687.8904988	676.6335599
8	3000	720.7574796	637.1610453	624.1536975
9	2800	663.3052535	587.0605133	573.42375
10	2600	606.6847497	537.6252417	524.3921277
11	2400	550.9465936	488.8966154	477.0082825
12	2200	496.1489481	440.9222439	431.2222304
13	2000	442.3594221	393.7575477	386.9838887
14	1800	389.6577006	347.4679486	344.2421068
15	1600	338.1392822	302.1319865	302.9431796
16	1400	287.9209869	257.8459208	263.0284341
17	1200	239.1494506	214.7308414	224.4300722
18	1000	192.0150047	172.9443135	187.06346
19	800	146.7761567	132.7009712	150.811427
20	600	103.8076292	94.31305677	115.487876
21	400	63.71114304	58.28428813	80.73508772
22	200	27.65510311	25.59934725	45.60938302
23
24	Oil FVF (Bo) — Saturated Region
25	P (psi)	Bo Standing	Bo Vasquez-Beggs	Bo Glaso
26	3500	1.502320678	1.435848929	1.405426405
27	3200	1.453888878	1.399120299	1.361593303
28	3000	1.422492461	1.374986519	1.333811707
29	2800	1.391836585	1.351151939	1.307171641
30	2600	1.361947319	1.327633847	1.281663909
31	2400	1.332853504	1.304451931	1.257279303
32	2200	1.304587305	1.28162884	1.234008473
33	2000	1.27718494	1.25919094	1.211841743
34	1800	1.250687669	1.237169354	1.190768828
35	1600	1.225143179	1.215601447	1.170778399
36	1400	1.200607609	1.194533013	1.15185737
37	1200	1.177148663	1.174021658	1.133989653
38	1000	1.154850705	1.154142341	1.117153837
39	800	1.133823845	1.134997172	1.101318417
40	600	1.114222069	1.116734695	1.086430601
41	400	1.096286167	1.099594546	1.07238423
42	200	1.080479593	1.084045174	1.058887744
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

Standing Vasquez-Beggs Glaso

Name	Refers To	Comment
API	Inputs!$B$5
GasGravity	Inputs!$B$6
RsAtPb	Inputs!$B$8
Salinity_gl	Inputs!$B$20
Salinity_pct	Inputs!$B$19
Temperature	Inputs!$B$7

Opens in	Needs the Petroleum Office add-in: its PO functions show #NAME? without it once Excel recalculates.
Functions used	PO.PVT.Bg.ByDefinition PO.PVT.Bo.Sat.ByGlaso PO.PVT.Bo.Sat.ByStanding PO.PVT.Bo.Sat.ByVasquezBeggs PO.PVT.Bo.UnSat.ByDefinition PO.PVT.Bw.ByMcCain PO.PVT.Cg.ByDefinition PO.PVT.Co.UnSat.ByVasquezBeggs PO.PVT.Cw.UnSat.ByOsif PO.PVT.Pb.ByStanding PO.PVT.Ppc.BySutton PO.PVT.Rs.ByGlaso PO.PVT.Rs.ByStanding PO.PVT.Rs.ByVasquezBeggs PO.PVT.Rsw.Pure.ByMcCain PO.PVT.Tpc.BySutton PO.PVT.Ug.ByLGE PO.PVT.Uo.Dead.ByEgbogah PO.PVT.Uo.Sat.ByBeggsRobinson PO.PVT.Uo.UnSat.ByVasquezBeggs PO.PVT.Uw.1Atm.ByMcCain PO.PVT.Uw.ByMcCain PO.PVT.Z.ByBrillBeggs
File	PVTFunctions.xlsx, 41 KB
Category	Reservoir
For agents and tools	Structure (.json) · Descriptor (.md)

Tags:

pvtstandingvasquez-beggsglasoblack-oilgaswaterbubble-pointformation-volume-factorviscosityz-factor
